libc8

.

This is a C library for interpreting, assembling, and disassembling CHIP-8 and SCHIP code, optionally utilizing the SDL2 library for graphics.

An example assembler, disassembler, and interpreter is located in tools/.

Building

cmake -DTARGET_GROUP=all .
make

This will build libc8 as well as the example tools.

SDL2

SDL2 support is enabled by default. To disable it to use another graphics library, run cmake with -DSDL2=OFF. If simulate() is ever called in your code, you must implement these functions with your preferred graphics library:

Note: the all and tools targets require SDL2 to be ON.

• void c8_deinit_graphics(void)
• int c8_init_graphics(void)
• void c8_render(c8_display_t *, int *)
• int c8_tick(int *, int)

See this page for more information about these functions.

Example Tools

• Interpreter
• Assembler
• Disassembler

Documentation

Full documentation for libc8 is available here.

Testing

Testing is done using ctest and Unity (See here for an overview).

cmake -DTARGET_GROUP=test -DSDL2=OFF
make && ctest --verbose

Screenshots

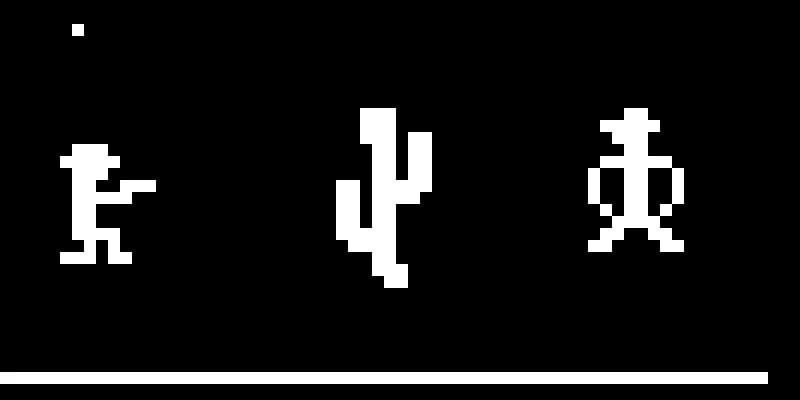

The libc8 CHIP-8 interpreter running Outlaw by John Earnest:

Further Reading

• Cowgod’s Chip-8 Technical Reference
• S-CHIP 1.1 Reference
• Octo
• CHIP-8 Extensions and Compatibility

Bugs

If you find a bug, submit an issue, PR, or email me with a description and/or patch.

License

Copyright (c) 2019-2025 Ben O’Neill ben@oneill.sh. This work is released under the terms of the MIT License. See LICENSE for the license terms.
